EMG BQC Control 1 or 2-Pickup 2-Knob 3-Band Treb/Bass Stack - Mid/Mid Stack

Control Configuration

Treble/Bass Stack
Mid/Mid Stack

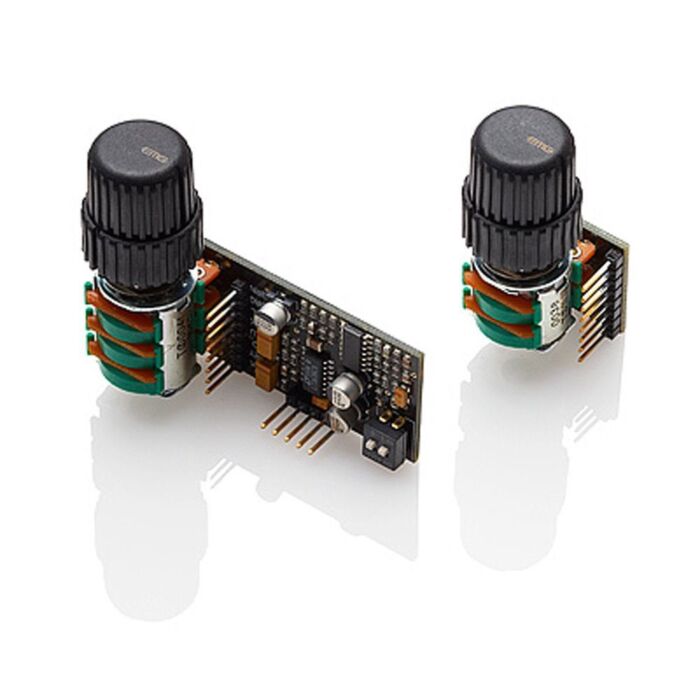

The BQC Control features a bass and treble equalizer on a concentric (stacked) pot along with the concentric (stacked) mid-control. It takes up very little space and will work with any pickup, active or passive.

The BQC is an active onboard EQ circuit for bass guitars, and allows individual control over treble, bass, and midrange frequencies. The midrange control has a variable frequency knob (lower) that allows you to sweep through the midrange frequency range from 100Hz to 1kHz. The upper midrange knob selects the frequency to boost or cut.

Package Includes

1 BQC Control
2 Knobs
1 Battery Clip with Buss Connector
1 Stereo Output Jack (Battery Switching)
4 Interconnect Cables (2 Red, 2 White)

Technical Specifications

Input Impedance(Ohms) - 1 MOhm
Gain/Attenuation/ Frequency Treble Control -+/-12db/(Adjustable)
Gain/Attenuation/ Frequency Bass Control - +/-12db/20Hz
Input Referred Noise - -120dbV
Output Impedance (Ohms) - 2K
Recommended Supply Voltage - 18 Volts
Current @ 9V/18V (Microamps) - 600/740
Battery Life (Hours) - 750
Maximum Supply (Volts DC) - 27 Volts

Wiring Diagram
