EMG BQC System 2-Pickup 4-Knob 3-Band Vol - Bl - Treb/Bass Stack - Mid/Mid Stack

Control Configuration

1. Volume
2. Blend
3. Treble/Bass Stack
4. Mid/Mid Stack

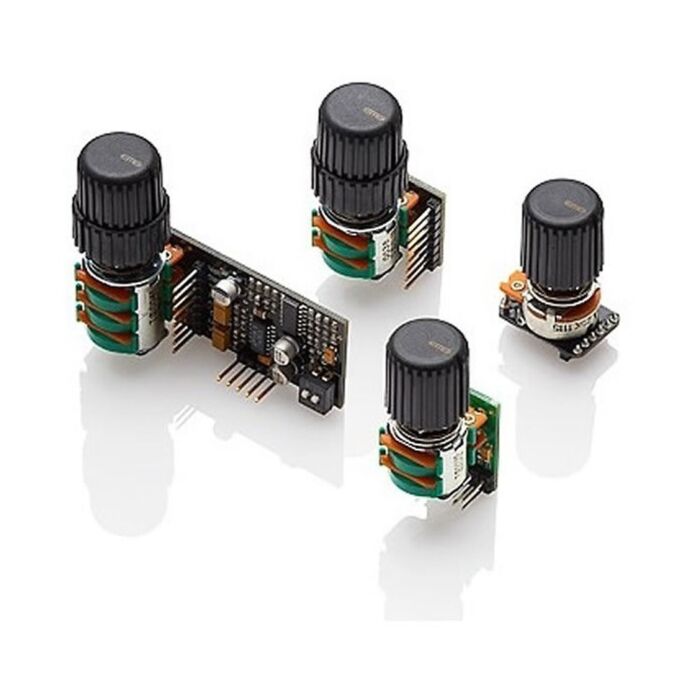

Built specifically for EMG pickups, the BQC System works as a complete control system for bass guitars. It incorporates a pre-wired active balance control which allows for loss-free balance between two pickups, a BQC Control 3-band equalizer featuring dual-pole filters for broadband equalization, and a master volume. Both the bass and treble are on a concentric pot as well as the mid-control. The balance control and EQ controls all come with convenient center detents to let you know when no equalization is in effect.The mid-range control has a variable frequency knob that allows you to sweep through the mid-frequency range from 100Hz to 1KHz. This selects the frequency to boost or cut.

Package Includes

• 1 BQC System
• 2 Concentric Knobs Sets
• 2 Single Non-Concentric Knobs
• 1 Battery Clip with Buss Connector
• 1 Stereo Output Jack (Battery Switching)
• 4 Interconnect Cables (2 Red, 2 White)

Technical Specifications

• Input Impedance(Ohms) - 1 MOhm
• Gain/Attenuation/ Frequency Treble Control -+/-12db/(Adjustable)
• Gain/Attenuation/ Frequency Bass Control - +/-12db/20Hz
• Input Referred Noise - -120dbV
• Output Impedance (Ohms) - 2K
• Recommended Supply Voltage - 18 Volts
• Current @ 9V/18V (Microamps) - 600/740
• Battery Life (Hours) - 750
• Maximum Supply (Volts DC) - 27 Volts
