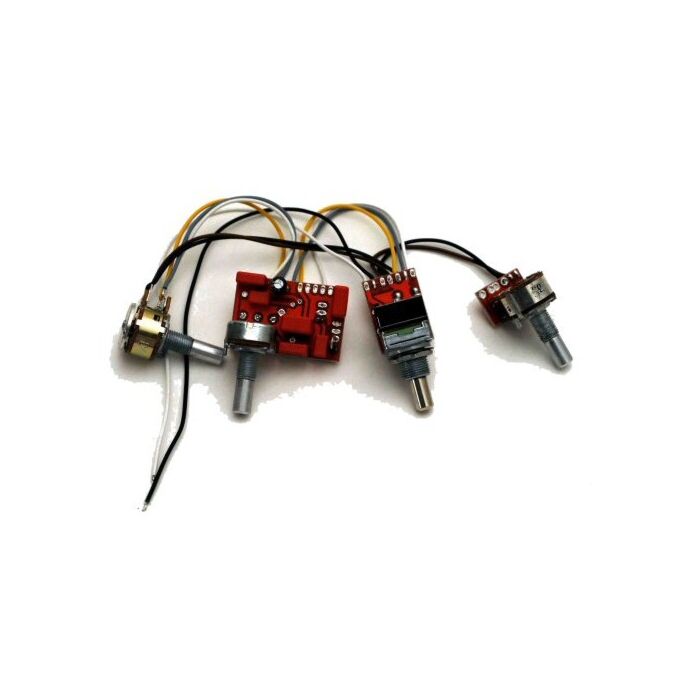

Glockenklang 2-Pickup 4-Knob 2-Band Vol P/P A/P - Bl - Treb - Bass

Control Configuration

Volume Active/Passive Push/Pull
Blend
Treble(Tone Roll-Off in Passive Mode)
Bass

Description

Recommended for use in Rock, Jazz, Solo, Reggae applications. Tight low-end that is focused and warm.Due to the high performance electronic, in flat position of the eq you can hear no difference between active and passive mode!

Unit comes pre-wired with high flexible cables. Knobs are not included. Potentiometers have 6mm solid shafts. Stacked pot has 4mm (upper) and 6mm (lower) solid shaft.

Technical Specifications

Treble: +/- 18 dB@18 KHz
Bass: +/- 14 dB@40 Hz
Gain: 1 (0 dB)
Input-impedance (without Balance): 1.5 MOhm
Frequency range: 20 Hz -20 KHz
Power requirement: 9 volts/1.3 mA (2 band)

Wiring Diagram
