Glockenklang 2-Pickup 4-Knob 3-Band Vol P/P A/P - Bl - Treb/Bass Stack - Mid

Control Configuration

1. Volume Active/Passive Push/Pull
2. Blend
3. Treble/Bass Stack
4. Mid

Description

Recommended for use in Rock, Jazz, Solo, Reggae applications. Tight low-end that is focused and warm.Due to the high performance electronic, in flat position of the eq you can hear no difference between active and passive mode!

Please Note:3 band 4-knob version (with stacked treble bass) does not have the passive tone roll off feature.

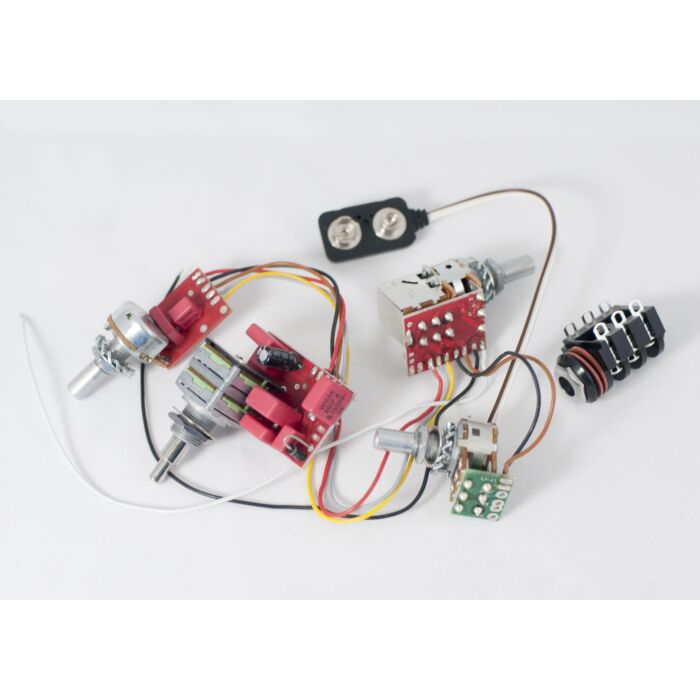

Unit comes pre-wired with high flexible cables. Knobs are not included. Potentiometers have 6mm solid shafts. Stacked pot has 4mm (upper) and 6mm (lower) solid shaft.

This preamp can run at 9 or 18 volts.

Technical Specifications

• Treble: +/- 18 dB@18 KHz
• Mid: +/- 9 dB@550 Hz
• Bass: +/- 14 dB@40 Hz
• Gain: 1 (0 dB)
• Input-impedance (without Balance): 1.5 MOhm
• Frequency range: 20 Hz -20 KHz
• Power requirement: 9 volts/2.3 mA (3 band)
