NOLL TCM2 2-Pickup 4-Knob 2-Band Vol P/P A/P - Bl - Treb(passive tone in passive mode) - Bass B 2003

Control Configuration

2-Pickup 2-Band System

Volume Push-Pull(Push-Pull Active/Passive) Blend Treble (Now includes a double function passive tone roll off in passive mode) Bass

Onboard Preamp

TCM 2

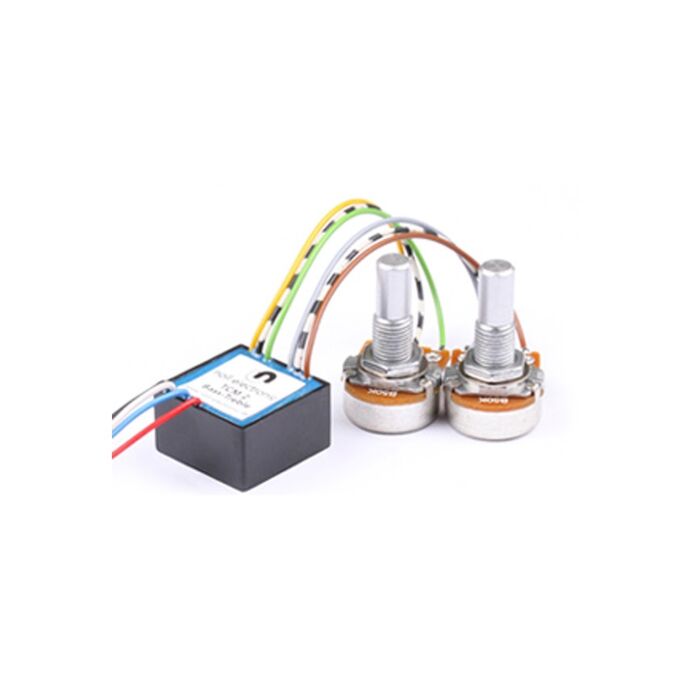

The NOLL TCM 2 for Bass guitar is a compact equalizer that provides and easy and space-saving installation.

The TCM2 includes the Volume (Push-Pull Active/Passive), Blend control, jack, and battery clip. The Treble and Bass controls are prewired with high flexible cables.

Please Note:

Some soldering for Volume and blend are required. Knobs are not included.

The Bass and Treble controls are center-detented and allow 15 dB of boost and cut with a gentle slope of 6dB per octave which results in a natural, transparent, and true sound.

The treble control uses a special hybrid potentiometer that functions as a passive tone control in passive mode)

This equalizer can be powered with a minimum 9-volt battery, or 18v to ensure more headroom and longer battery life.

The NOLL TMC 2 can be combined with either active or passive pickups.

Potentiometers have a 6mm solid shaft, while any stacked control has 4mm upper, and 6mm lower solid shafts.

Recommended For:

This preamp is recommended for a 4-knob control layouts.

Installation Depth:

• 29 mm without battery
• 36 mm with battery

Technical Specifications

The low impedance output of the TCM 2 provides other great features. You can run a cable for up to 100 feet (30 m) without losing high frequency response.
