NOLL TCM2 Jazz Bass 2-Pickup 4-Knob 2-Band Vol P/P A/P - Bl - Treb - Bass B 2057 C

Control Configuration

2-Pickup 2-Band System

Volume(Active/Passive Push-Pull) Blend Bass Treble (Passive tone in passive mode)

Onboard Preamp

TCM 2

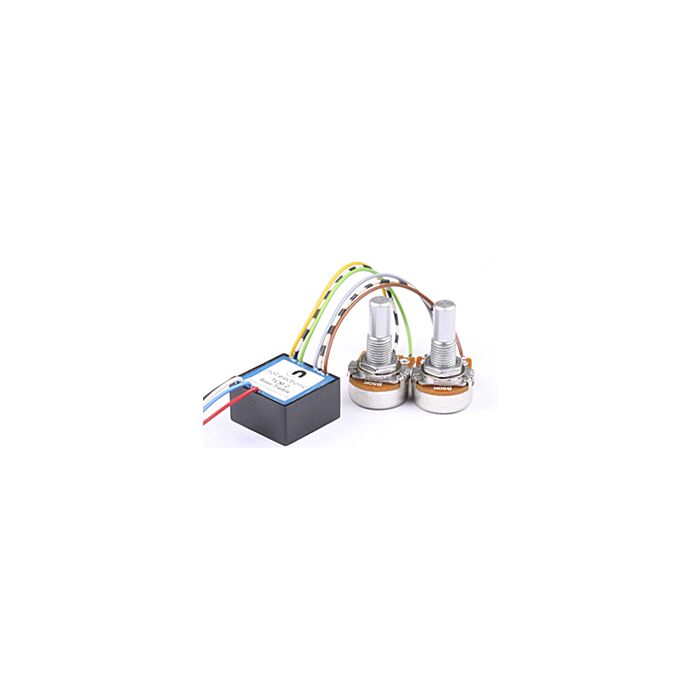

The NOLL TCM 2 for Jazz Bass ®is a compact equalizer that provides and easy and space-saving installation.

The TCM2 is a complete assembly with Volume push/pull (Active/Passive), Blend, Bass, and Hybrid Treble (Passive tone in passive mode).

Includes controls mounted to control plate, output jack, and chrome knobs.

The Bass and Treble controls are center-detented and allow 15 dB of boost and cut with a gentle slope of 6dB per octave which results in a natural, transparent, and true sound.

This equalizer can be powered with a minimum 9-volt battery, or 18v to ensure more headroom and longer battery life.

The NOLL TMC 2 can be combined with either active or passive pickups.

Potentiometers have a 6mm solid shaft, while any stacked control has 4mm upper, and 6mm lower solid shafts.

Recommended For:

This preamp is intended for a 4-knob control layout with the output jack on the side of the bass like the Fender Jazz Bass® Deluxe.

Installation Depth:

Technical Specifications

The low impedance output of the TCM 2 provides other great features. You can run a cable for up to 100 feet (30 m) without losing high frequency response.
