NOLL TCM 3P 1-Pickup 4-Knob 3-Band Vol P/P A/P - Treb/Treb Stack - Bass/Bass Stack - Mid/Mid Stack

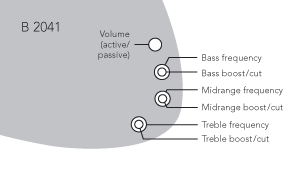

Control Configuration

1-Pickup 3-Band System

Volume Push-Pull(Push-Pull Active/Passive) Treble(Boost/Cut)/Treble(Frequency) Bass(Boost/Cut)/Bass(Frequency) Midrange(Boost/Cut)/Midrange(Frequency)

Onboard Preamp

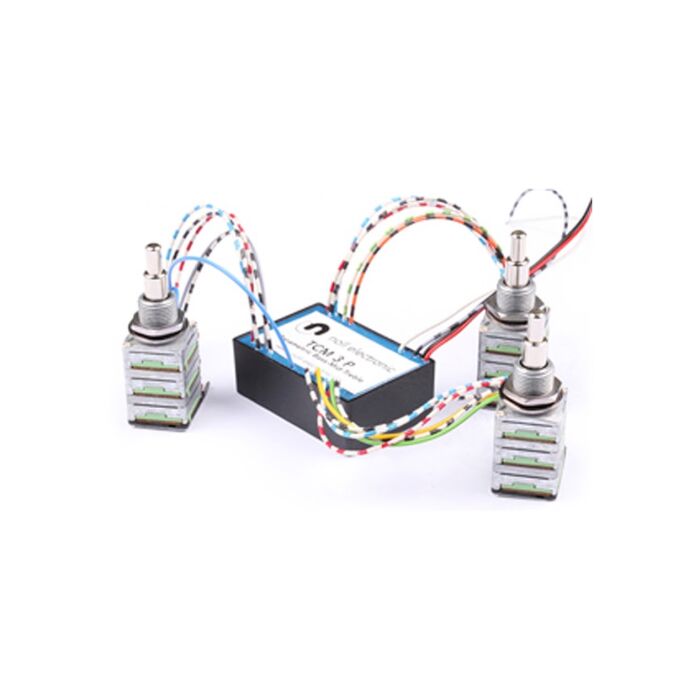

TCM 3 P

The NOLL TCM 3 P is a compact equalizer that provides easy and space-saving installation. The secure insulation of the sealed equalizer perfectly protects other electrical components. Bass, midrange and treble controls are center-detented and allow 15dB of boost and cut with a gentle slope of 6dB per octave which results in a natural and true sound.

The best feature of this preamp is a parametric control with adjustable frequency range for all controls. With this electronic the player can pretty much dial up any sound imaginable.

The TCM3 P includes the Volume (Push-Pull Active/Passive), Jack, and Battery clip.

The Treble, Bass, and Midrange controls are prewired with high flexible cables.

Please Note:

Some soldering for Volume are required. Knobs are not included.

This equalizer can be powered with a minimum 9-volt battery, or 18v to ensure more headroom and longer battery life.

The NOLL TMC 3 P can be combined with either active or passive pickups.

Potentiometers have a 6mm solid shaft, while any stacked control has 4mm upper, and 6mm lower solid shafts.

Recommended For:

This preamp is recommended for a 4-knob control layouts for one pickup instruments.

Technical Specifications

The low impedance output of the TCM 3 P provides other great features. You can run a cable for up to 100 feet (30 m) without losing high frequency response.

Click Here For Wiring Diagram
