NOLL TCM 3PM 2-Pickup 4-Knob 3-Band Vol P/P A/P - Bl - Treb/Bass Stack - Mid/Mid Stack B 2024

Control Configuration

2-Pickup 3-Band System

Volume Push-Pull(Push-Pull Active/Passive) Blend Treble/Bass stack Midrange(Boost/Cut)/Midrange(Frequency) stack

Onboard Preamp

TCM 3 PM

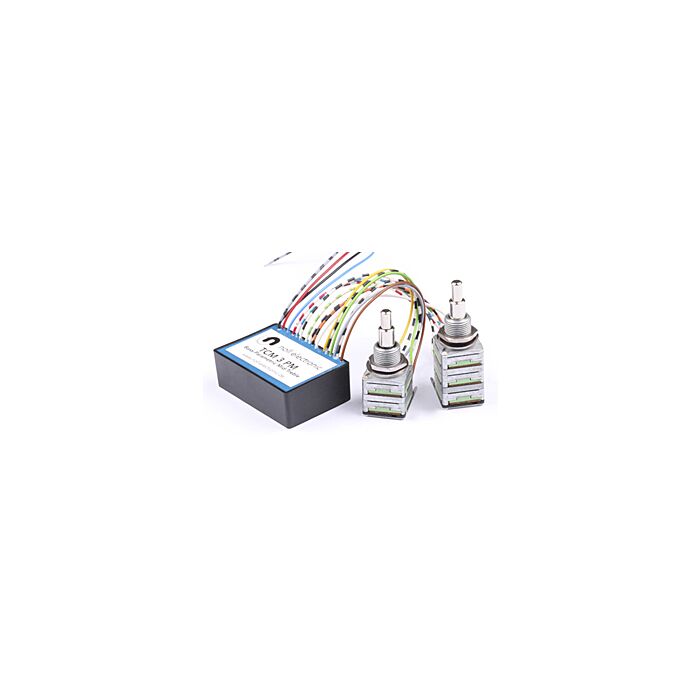

The NOLL TCM 3 PM is a compact equalizer that provides easy and space- saving installation. The secure insulation of the sealed equalizer perfectly protects other electrical components. Bass, midrange and treble controls are center-detented and allow 15dB of boost and cut with a gentle slope of 6dB per octave which results in a natural and true sound. The top feature of the TCM 3 PM is a parametric midrange control with adjustable frequency range from 280Hz to 1,5KHz.

The TCM3 PM includes the Volume (Push-Pull Active/Passive), Blend, jack, and battery clip. The concentric Treble/Bass, and concentric Midrange controls are prewired with high flexible cables.

Please Note:

Some soldering for Volume and Blend are required. Knobs are not included.

This equalizer can be powered with a minimum 9-volt battery, or 18v to ensure more headroom and longer battery life.

The NOLL TMC 3 can be combined with either active or passive pickups.

Potentiometers have a 6mm solid shaft, while any stacked control has 4mm upper, and 6mm lower solid shafts.

Recommended For:

This preamp is recommended for a 5-knob control layouts for two pickup instruments.

Installation Depth:

Technical Specifications

The low impedance output of the TCM 3 PM provides other great features. You can run a cable for up to 100 feet (30 m) without losing high frequency response.

ATTENTION - All Noll TCM 3 preamps require the use of the supplied 9-lug stereo 1/4" jack to function correctly. No other jack may be used with the TCM 3 preamps
