NOLL TCM 4XM 2-Pickup 4-Knob 4-Band Vol P/P A/P - Bl - Treb/Bass Stack - Lo Mid/Hi Mid Stack B 2082

Control Configuration

2-Pickup 4-Band System

Volume Push-Pull(Push-Pull Active/Passive) Blend Treble/Bass stack Lo Mid/Hi Mid stack

Onboard Preamp

TCM 4 XM

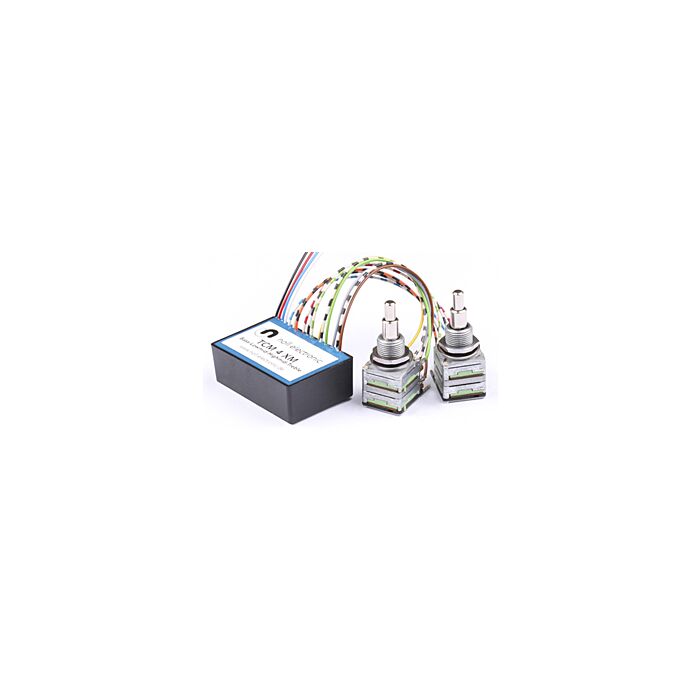

The NOLL TCM 4 XM is a compact equalizer that provides easy and space-saving installation.

Bass, low-midrange, high-midrange and treble controls are center-detented and allow 15dB of boost and cut with a gentle slope of 6dB per octave which results in a natural and true sound.

The TCM 4 XM includes the Volume (Push-Pull Active/Passive), Blend control, jack, and battery clip. The concentric Treble/Bass, and concentric Lo Midrange/Hi Midrange controls are prewired with high flexible cables.

Please Note:

Some soldering for Volume and Blend are required. Knobs are not included.

This equalizer can be powered with a minimum 9-volt battery, or 18v to ensure more headroom and longer battery life.

The NOLL TCM 4 XM can be combined with either active or passive pickups.

Potentiometers have a 6mm solid shaft, while any stacked control has 4mm upper, and 6mm lower solid shafts.

Recommended For:

This preamp is recommended for a 4-knob control layouts.

Technical Specifications

The low impedance output of the TCM 4 XM provides other great features. You can run a cable for up to 100 feet (30 m) without losing high frequency response.
